Despite the dismal reputation of the 6.0 (often referred to as the "six-point-Oh!"), we had no engine problems during the time we owned the truck. I believe that two factors contributed to this...almost all driving was highway towing mileage where the engine was working hard, and we changed the oil every 3000 miles using synthetic.
We purchased our Pinnacle in 2011, and made one return trip to California using the Ford as a tow vehicle. It was quickly apparent that the truck was operating at its limits hauling almost 16,000lbs. Braking was barely adequate, and the truck tended to be pushed around by the trailer, even with dual rear wheels. We made the decision to replace our tow vehicle, and began looking around and doing research.

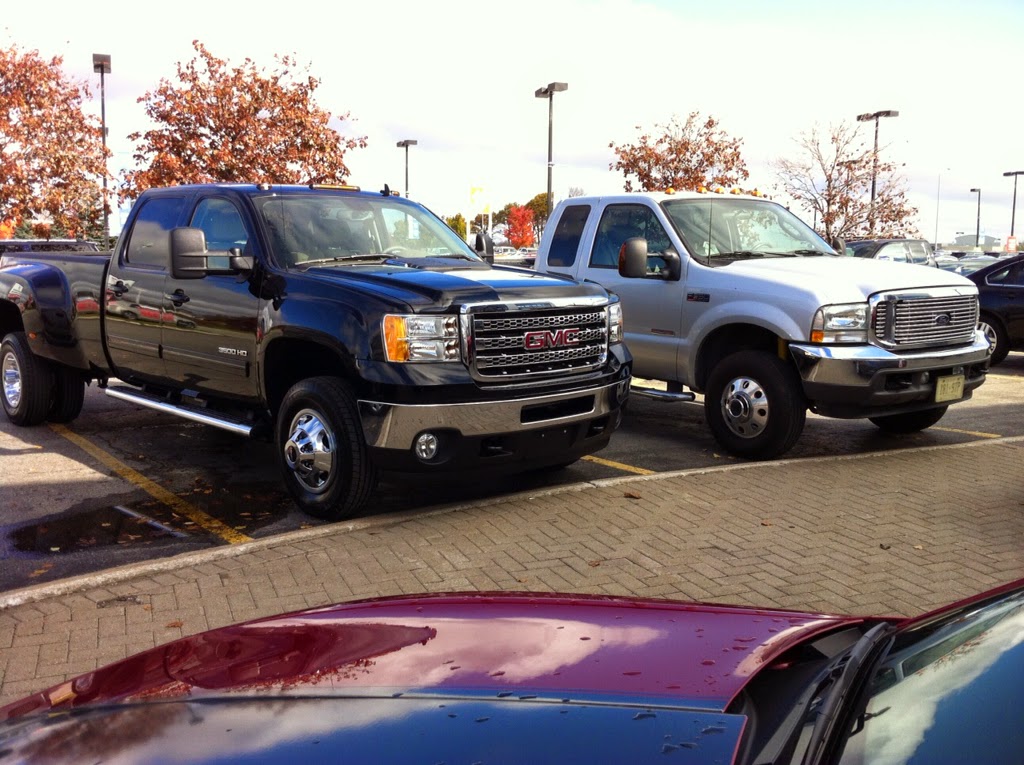

The new and the old. |
We ordered a black 2wd crew cab, in the SLT trim level, which included leather buckets and Bose audio, among other things. We decided to go with 2wd after much soul-searching, and after two years, have not regretted this decision. We have been in snow twice, and with almost 4000lbs pin weight over the rear wheels, traction is not an issue. If we intended to drive the truck unloaded in a winter climate, we would have decided differently.
A twinge of sadness! The Ford served us well. |
I have not yet felt a need for rear airbags with this truck. The rear suspension squats about two inches when the pin weight is applied, solidly onto the second stage of the three-stage leaf springs. This levels out the truck, which is slightly tail-high when unloaded. I did replace the OEM rear shocks with Rancho 9000XL adjustable units, after twice destroying the piston seals in the inadequate original shocks, which were replaced under warranty the first time.
Would we buy this truck if we were doing it again? In a heartbeat!
UPDATE: February 2016
I added airbags to the rear suspension last summer. On certain undulating road surfaces, the 16,000 lb mass of the fifthwheel, as it rocked fore-and-aft about the axles, seemed to exert so much vertical force that I found it annoying. It was not alarming or dangerous, just annoying.
I purchased a set of AirLift 5000 lb capacity bags, and performed the installation myself. It was a straightforward install, and took about 4 hours. I did not use an automatic compressor setup. I connected the bags together with a tee, and brought the air line to a fill valve located just inside the tailgate on the passenger side. I installed a pressure gauge next to the fill valve. I have a 3hp compressor permanently installed in the bed of the truck, powered from the onboard generator, and I use this to inflate the airbags before towing.
With the 3900 lb pin weight applied, the truck returns to its original ride height with 75 psi in the bags. After road testing with the fifthwheel attached, I found that the optimum pressure is 50 psi. The effective rate of an air spring increases with deflection, and this property limits the downward travel of the rear suspension when towing.
The porpoising effect mentioned above is great;y reduced, and the rig feels extremely solid and well-balanced. It was worth the $400 cost and the four hours work.
Hi David,
ReplyDeleteI'm wondering how you are enjoying the Rancho shocks you installed. We are buying a 2015 GMC 3550 DRW truck and will be pulling an even heavier trailer. I wonder if GMC has upgraded their stock shocks. Not likely!
Thanks,
Roy
The Rancho shocks are a great improvement over the stock units. I run them on the stiffest setting when towing, and the only downside is having to crawl under the truck to adjust them when the towing is done.
DeleteAlthough the shocks helped a lot, they still didn't give me the amount of control I wanted, over the 3900lb pin weight and 1000lbs of weight in the truck bed. I finally gave in and installed a set of Air Lift 5000 air bags a couple of weeks ago. I have yet to tow with the airbags installed, but I did test them using the pin weight of the trailer applied to the hitch. A pressure of about 75 psi restores the ride height of the truck to where it is without the pin weight applied. I will probably run around 50 psi in the bags.
By the way, I did the air bag install myself. It took about 4 hours, including running the air tubing.
3500! I wish they made a 3550!
ReplyDeleteYou are like Ray from Love Your RV. Man you guys can do anything mechanical. I read all your mods to the 5th wheel. I'm impressed. Wouldn't it be nice if the truck and rv manufacturers actually had all these things already installed. But then I guess they would double the price.
ReplyDeleteI enjoy doing the work on the RV myself. If you have basic mechanical and electrical skills, most of the work is not too different from that which a homeowner would do. There is a wealth of material online, which describes in detail how to do these repairs and mods. For instance, before I did the refrigerator replacement, I did a lot of reading of online articles by people who have done this replacement.
Delete
